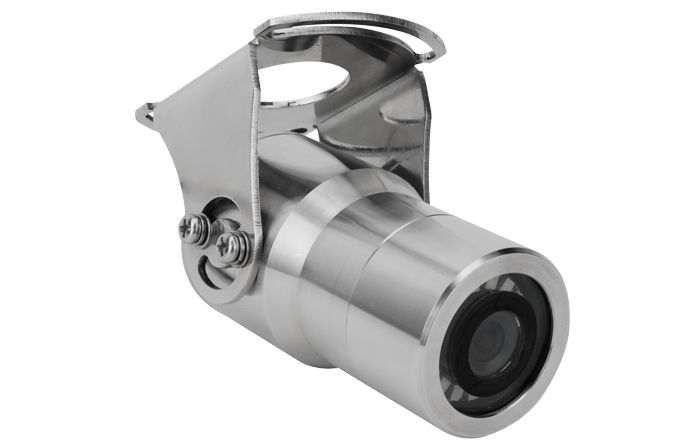

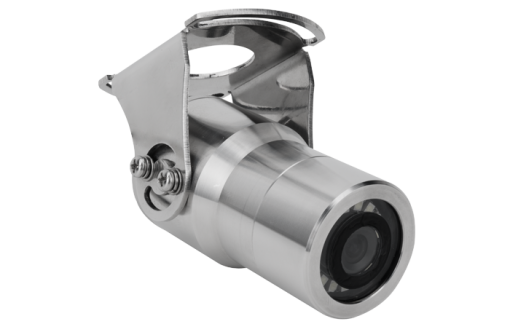

We have totally redesigned our famous SternWatch camera with better resolution, better stainless steel body, better Infrared lamps and a better waterproof design. PLUS – we have made the only switch-controlled White Light version that we have ever seen!
The new Stronghold-White Light camera (Like an Infrared version – but illuminates with White Light) can be used as a backup camera on vehicles and vessels.
This one-of-a-kind White Light illuminated camera can be used to illuminate Engine Rooms, inside of vessels or tanks, or any dark area that you need to see from time to time. Plus – it is controlled via a Potentiometer that can turn on the lights and vary the intensity from totally off all the way up to “blinding bright”. The camera comes with a connection for the potentiometer at the camera, or you can use the included 65′ waterproof cord (the potentiometer is the only part that is not waterproof) to run the switch to the cab, to the bridge or to a central station. In fact, you can add up to 3 extension cables for a total of about 200′.
We have jacked the resolution up to an incredible 700 lines (960H – SONY Super HAD II – Low Illumination model). Try to find another Marine Infrared Camera that has anywhere near this resolution.
The 15 White Light lamps are Long-Life Infrared Chip Lights that gives you surprisingly bright white lighting that allows you to illuminate the immediate area or the engine room or tank you are working in. Use this incredible camera anywhere you need clear, normal lighting that can be intensity controlled.
This Marine White Light Camera is perfectly designed for a wide range of automotive and industrial applications such as construction vehicles, truck and marine industry. The high grade 316 Stainless steel that we use to make this camera, is not only salt and rust resistant, but is also anti germ, so it can be safely used in the food processing industry as well.
The 3.6mm lens gives you a wide 75 degree field of view, and the small compact size will fit nearly anywhere you need it to go.
Pair this camera up with any of our Mobile Monitors for a ready-to-use Mobile or stationary viewing solution.
Camera Video/Power Connection
Maximum Distance over standard 18/2 power wire is 700′ feet
Stronghold – MP/WL
|Image Sensor||1/3″ Sony Super HAD II Color CCD 960H|
|Effective Pixels||976(H) x 494(V)|
|Scanning Frequency||15.734 KHz (H) 59.94Hz (V)|
|Scanning System||2:1 Interlace|
|S/N Ratio||more than 52db (AGC off)|
|Min. Sensitivity||0.1 Lux at F: 1.2, 0.001 Lux at SENS-UP on|
|Gama Correction||.045 approx.|
|Video Output||Composite Video 1.0Vp-p/75Ω|
|Lens||Fixed 3.6mm lens (75°)|
|Power Consumption||1.0 Watt|
|Operating Temp.||0°F – 125 °F|
|Dimensions||1.93″ Diameter x 4.50 Length|
If connecting this camera to a boat or vehicle charging system use the 12V DC Voltage Regulatorto prevent over voltage and VOIDING the camera warranty!
