We have totally redesigned our famous SternWatch camera with better resolution, better stainless steel body, better Infrared lamps and a better waterproof design. PLUS – we have made the only switch-controlled White Light version that we have ever seen!

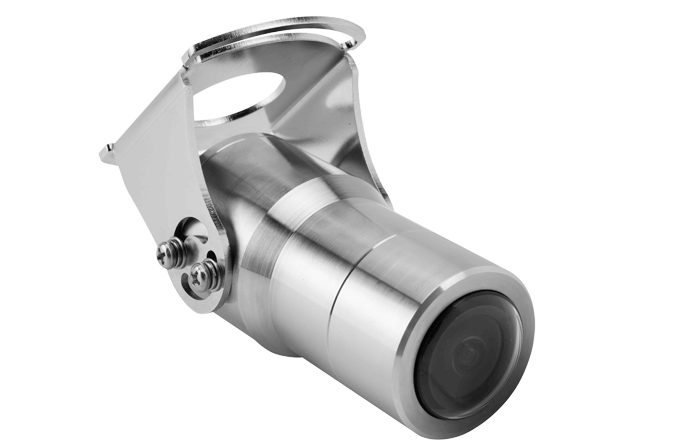

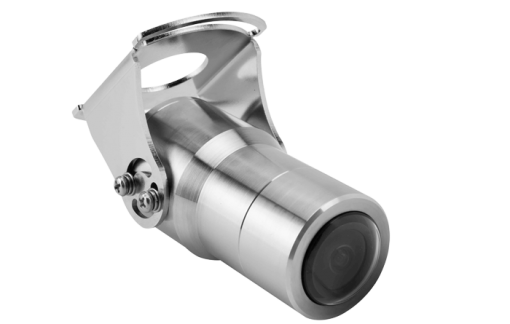

The new Stronghold-White Light HD-TV camera (Like an Infrared version – but illuminates with White Light) can be used as a backup camera on vehicles and vessels.
This one-of-a-kind White Light illuminated camera can be used to illuminate Engine Rooms, inside of vessels or tanks, or any dark area that you need to see from time to time. Plus – it is controlled via a Potentiometer that can turn on the lights and vary the intensity from totally off all the way up to “blinding bright”. The camera comes with a connection for the potentiometer at the camera, or you can use the included 65′ waterproof cord (the potentiometer is the only part that is not waterproof) to run the switch to the cab, to the bridge or to a central station. In fact, you can add up to 3 extension cables for a total of about 200′.
We have jacked the resolution up to an incredible 1080p using the HD-TVI Format and the 1/2.8″ Sony Exmor image sensor. Try to find another Mobile Infrared Camera that has anywhere near this resolution.
The 15 White Light lamps are Long-Life Infrared Chip Lights that gives you surprisingly bright white lighting that allows you to illuminate the immediate area or the engine room or tank you are working in. Use this incredible camera anywhere you need clear, normal lighting that can be intensity controlled.
This HD-TVI Mobile White Light Camera is perfectly designed for a wide range of automotive and industrial applications such as construction vehicles, truck and marine industry. The high grade 316 Stainless steel that we use to make this camera, is not only salt and rust resistant, but is also anti germ, so it can be safely used in the food processing industry as well.
The 3.6mm Megapixel lens gives you a wide 75 degree field of view, and the small compact size will fit nearly anywhere you need it to go.
Pair this camera up with any of our HD Quad Processor and any HDMI / VGA Monitor for a ready-to-use Mobile or stationary viewing solution.
Maximum Distance over standard 18/2 power wire is 275′ feet
Camera Video/Power Connection
Stronghold – MP/WL HD-TVI
|Image Sensor||1/2.8″ Sony Exmor CMOS|
|Min. Illumination||Color: 1.0 LUX, BW: 0.5 LUX
Color DSS: 0.002 LUX, BW DSS: 0.0008LUX
|S/N Ratio||more than 50db (AGC off)|
|SENS-UP||off/x2 – x3|
|Privacy mask||4 Masks|
|Power Source||12v DC ±10%|
|Lens||Fixed 3.6mm MP lens (75°)|
|Power Consumption||3.0 Watt / .340 mA|
|Operating Temp.||0°F – 140 °F|
|Dimensions||1.93″ Diameter x 4.50 Length|
If connecting this camera to a boat or vehicle charging system use the 12V DC Voltage Regulatorto prevent over voltage and VOIDING the camera warranty!
