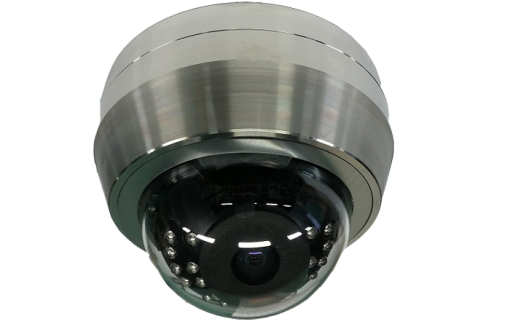

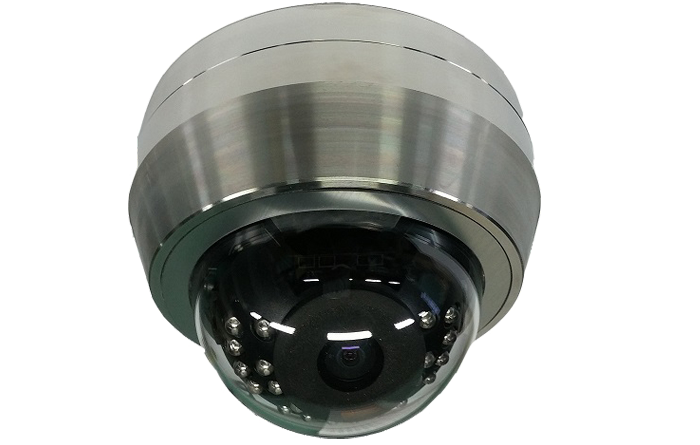

Rugged Marine makes the toughest Dome Cameras in the Industry – at an affordable price. The new Rugged Domes series cameras are made out of high quality 316 grade Stainless Steel, so they can withstand almost any challenging or extreme environment. These Stainless body cameras are rust and germ resistant, as well as salt water friendly.
We have improved these great cameras over the years, and they all feature the latest Sony & Panasonic cameras, have 2.8-12mm Auto-Iris Varifocal lenses, and are waterproof to IP67 standards.
They also have Onscreen Menus, Joystick Menu Controls protected inside the dome , True Day/Night mechanical Infrared Cut Filters, 3-Axis Gimble camera brackets, and 24 “Smart IR Technology” Infrared LED’s . (see full spec sheets for each type below)
You will not find a tougher dome, nor will you find a Stainless Steel Waterproof Dome Camera for anywhere near these great prices.
Installation / Technical Information
Maximum Distance over standard 18/2 power wire is 375′ feet
|Image Sensor||1/3″ Sony Super HAD II Color CCD 960H|
|Effective Pixels||976(H) x 494(V)|
|Scanning Frequency||15.734 KHz (H) 59.94Hz (V)|
|Scanning System||2:1 Interlace|
|S/N Ratio||more than 52db (AGC off)|
|Min. Sensitivity||0.1 Lux at F: 1.2, 0.001 Lux at SENS-UP on|
|Gama Correction||.045 approx.|
|Video Output||Composite Video 1.0Vp-p/75Ω|
|Electronic Shutter||1/60 – 1/1000,000sec|
|Lens||manual Varifocal 2.8-12mm auto iris lens (IRC)|
|Power Source||12V DC / 24V AC ±10%|
|Power Consumption||3.0 Watt|
|Operating Temp.||0°F – 125 °F|
|Dimensions||4.77″ Diameter x 3.58 Height|
