Marine Waterproof LCD Monitor
The Lowest Priced Completely Waterproof Monitor Available
Perfect for cars, trucks, Boats, Construction Machinery, Mining, ATV/UTV’s, etc.
Rugged Marine has introduced the lowest cost completely waterproof 7” LCD Monitor in the industry. Other waterproof monitors we have seen are as much as $1200 higher than this unit. Features a wide temperature range and will withstand heated water high pressure wash-down.
7” Digital Color LCD TFT Monitor
2 Channel Model or 4 Channel Model with Quad Switcher
Totally Sealed Aluminum Alloy Case with Steel bracket and plastic visor
Uses 200mA of 12V DC power
Hydrochloric Acid Resistant
IP69K Rated (better than IP68 – can handle high-pressure heated wash-down water and chemicals)
Each Channel can be switched from normal to “Reverse” images
Front Panel Controls and Wireless Remote Control included
Trigger Wires included for Call-Up of any channel automatically (by switch or connect to back-up, blinkers, etc.) Can set delay time for camera call-up as well.
Standby mode can also power up only when triggered
2 Channel Model: single channel selectable (2 BNC Inputs)
4 Channel Model: single, dual, triple & quad images selectable (4 BNC Inputs)
Menu can be changed from English to: Dutch, Spanish, Portuguese, French, German, Italian and Russian.
Wide Voltage Range: 12-32 Volts DC
Wide Temperature Range: -22°F to 175°F (-30°C to 80°C)
Wide Viewing Angles: Up: 50° Down: 60° Side to Side: 70°
16:9 Aspect Ratio
7″ WaterProof Monitor Specifications
|Dimension||7 inch Diagonal|
|lattice distance：||0.192(H) x 0.1805(V)|
|Viewing angle:||U:50°/ D:60°/ R/L:70°|
|Overall Dimensions:||Monitor 8″W x 3.75″H x 1.75″D W/Bracket 9″W x 6.5″H x 2.25″D|
|Power||12v DC – 32v DC|
|Power Consumption||4W Max.|

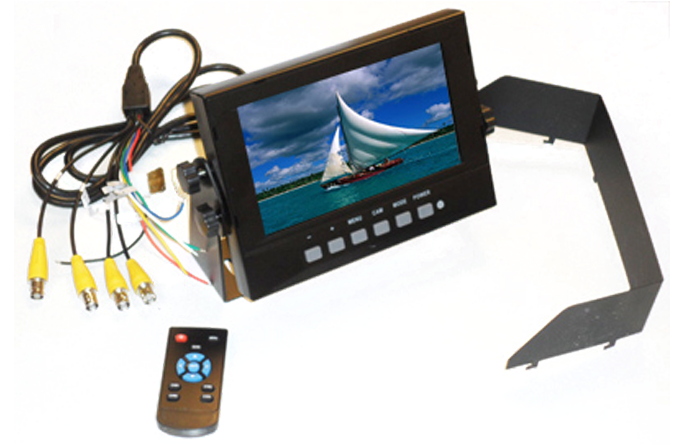

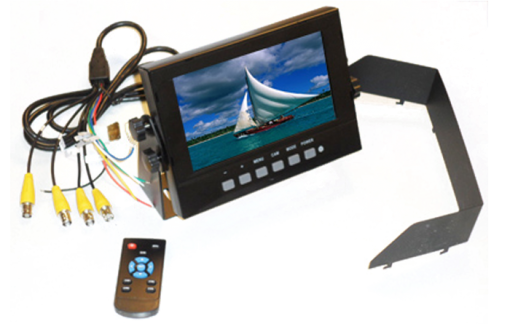

7″ Waterproof Monitor
Back View of Monitor
