Converts TVI & AHD Camera signals to HDMI for Mobile & Stationary Monitoring
Rugged Marine has introduced an easy way to monitor High Definition TVI & AHD Cameras on any HDMI Monitor.

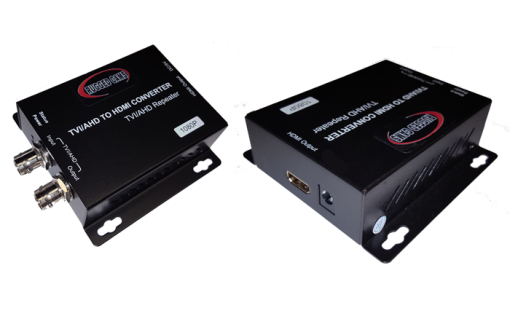

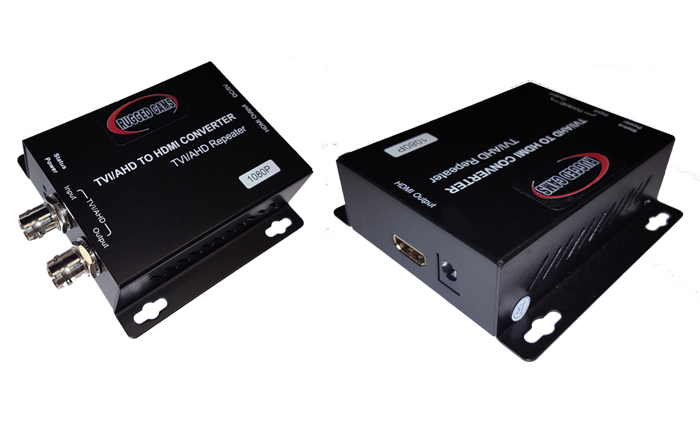

It’s the TVI/AHD Converter Box.
Works at 720p or 1080p and allows you to view the camera at full HD Resolution on any Monitor that has an HDMI input.
The small size of this converter (approx. 3-3/4” x 3-3/4” x 1.1”) makes it perfect for Mobile applications. (Our newest model, available in December 2016, allows anywhere from 9 volts DC to 24 volts DC operating voltage) Comes with a plug in wall pack transformer for quick powering where AC Power is available.
Also, has a pass-thru BNC for continuing the Camera Signal on to a DVR – or – for daisy-chaining to multiple monitors using multiple converters. (Example: one 600′ run of coax can have multiple monitors viewing the camera at any distance along the run.)
Two LED Status lights denote Power and Camera Signal connections.
Comes with the Rugged Marine Standard Two Year Warranty.
|Output||1x HDMI, 1x TVI/AHD|
|Interface||HDMI A – Male, BNC|
|TVI/AHD input Resolution||720p (25Hz/30Hz/50Hz/60Hz
|HDMI Output Resolution||1080p@60Hz|
|Dimensions||3.75″(W) x 3.75″(L) x 1.10″ (H)|
|Operating Voltage||9v – 24v DC|
If connecting this camera to a boat or vehicle charging system use the 12V DC Voltage Regulatorto prevent over voltage and VOIDING the camera warranty!
