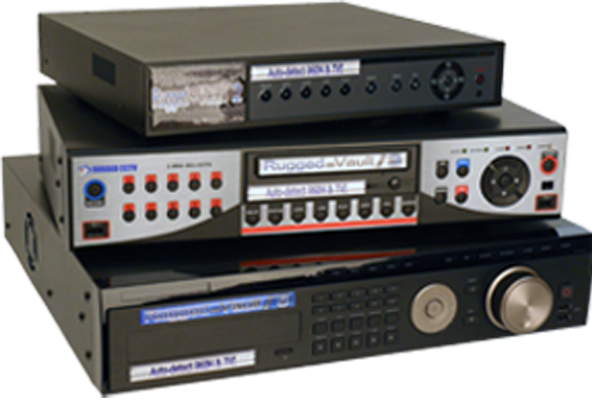

Rugged Vault HD-TVI DVR
Call For Price
We custom build each one to your needs!
- Auto-detect
- HD-TVI
- 960H Analog
- D1 Camera recording
HD-1080p & Communication Over A Single Coax
No Distance Limitations / No CAT5 / No Router / No Switch
Rugged Cams brings you the Ultimate Hybrid DVR that delivers HD-1080p Megapixel Video – PLUS – it recognizes any Legacy Analog cameras you may already have.
No Hassle – Instant HD Video with a Single Connection – Up To 1500 feet!
The New Rugged Vault Hybrid DVR from Rugged Cams, is stuffed with every feature that you and your business will need for bringing beautiful, HD-1080p Video to your Desktop, Laptop, Phone or Tablet. Manage it from anywhere – and on any device!
Many of our Megapixel Cameras Have ZOOM LENS Control from the DVR or your Phone/Tablet
Since the Rugged Vault Hybrid DVR can automatically sense between HD-TVI cameras and any Legacy Analog cameras you may already have, this DVR is ready to grow with you as you slowly replace old cameras with new Megapixel cameras. Mix & Match any way you like!
The Rugged Vault can record REAL TIME for every channel – no matter the resolution!
The Rugged Vault Hybrid DVR has a very easy to navigate Menu structure that is easy to grasp right away. You will find that it is really simple to navigate through the many options for how and when to record – real time or motion-based – and can even speed up the process of searching for events in your recorded footage, with Smart Search and Event Search features that can find the evidence you need in a matter of minutes.
This great Hybrid DVR series has so many features, we literally cannot list them all here. For example, there is a “Signal Booster” built into every channel that corrects weak or fuzzy signals. It also can give you Alarm Notifications on your Phone or Tablet (via our handy App), a Gigabit Ethernet Port, Two-Way Audio Communication, and many types of recording to choose from (External Sensor, Motion, Audio Detection, Text/POS, etc.).
Talk to one of our Sales Engineers today about choosing the model and Chassis that best suits your needs. Capacities include: 2 Hard Drives – 3 Hard Drives – 6 Hard Drives – & External RAID Storage
PLUS – Don’t Forget – Rugged Cams gives you FREE Tech Support for LIFE!
Rugged Vault Universal DVR
- Manual
- Quick Reference Guide
- Mac Viewer Software
- CMS/VMS Software
- CMS/VMS Manuals
- Firmware Upgrades
Auto-HD Universal DVR
Auto-HD/2 Auto-HD/3 Auto-HD/6 |
|
| Operating System | Embedded Linux Built in flash memory |
| Language | Chinese, Chinese(S), Dutch, English, French, German, Hebrew, Hungarian, Italian, Japanese, Korean, Latvian, Persian, Polish, Portuguese, Russian, Spanish, Sweden, Turkish |
| Time Accuracy | 5ppm (12.5 Sec/Month) |
| Time Sync. | NTP, GMT, DST |
| User | 15 Users (Admin., User1 ~ User14) |
| Access | Front button, Mouse, Remote Control, Network, Key controller |
| Hexaplex | Live monitoring, Recording, Playback, Backup, Network, Setup |
Auto-HD/2 Auto-HD/3 Auto-HD/6 |
|
| System | NTSC / PAL – Config switch |
| Input | 16 / 8 BNC |
| Output | 1 HDMI, 1 VGA, 1 BNC |
| loop | NA |
| Spot | 1 BNC |
Auto-HD/2 Auto-HD/3 Auto-HD/6 |
|
| Input | 16, 8, RCA |
| Output | 1 HDMI, 1 RCA |
Auto-HD/2 Auto-HD/3 Auto-HD/6 |
|
| Compression | H.264 |
| Speed | 1920 x 1080p real-time recording (480fps (30fps each 16 ch) / 240fps (30fps each 8 ch) |
| Resolution | ★1080p, 720p, 960H (960×480), D1 (720×480), CIF (352×240) |
| Mode | Schedule |
| Event | Sensor, Motion, Audio, text |
| Quality | 5 Levels |
| Bit Rate | 512kbps – 5Mbps/Ch, Adjustable |
Auto-HD/2 Auto-HD/3 Auto-HD/6 |
|
| Compression | G.711u |
| Sampling Rate | 8KHz |
| Bit Rate | 64Kbps |
Auto-HD/2 Auto-HD/3 Auto-HD/6 |
|
| Search | Go to first rec. time, Go to last rec. time, Go to last search time, Calendar, Log viewer, Smart search, Multi-time & day search, Event search |
| Mode | Event only playback, Backward, Pause, Frame by frame, Panorama Speed up (x1 ~ x32, x300) |
Auto-HD/2 Auto-HD/3 Auto-HD/6 |
|
| Interface | Ethernet 10/100/1G |
| Compression | H.264 or JPEG |
| Speed | Max. 720p 10 fps/ch |
| Resolution | Max. 1280 x 720p |
| Mode | Bandwidth control |
Auto-HD/6 |
Auto-HD/3 |
Auto-HD/2 |
|
| Interface | USB2.0, DVD, Network | USB2.0, , Network | USB2.0, Network |
| Format | Video clip (Backup viewer), JPEG Still Image, Log List,Setup Data | Video clip (Backup viewer), JPEG Still Image, Log List,Setup Data | Video clip (Backup viewer), JPEG Still Image, Log List,Setup Data |
Auto-HD/2 Auto-HD/3 Auto-HD/6 |
|
| Pre/Post-Alarm | 5sec / 5sec~5min |
| Motion Grid | 32 x 24 (NTSC/PAL) |
| Alarm Action | E-mail, Channel Popup, Buzzer, Relay, PTZ Preset, Spot, Remote CMS, Front LED |
| Input / Output | 4/1 – NC/NO |
Auto-HD/2 Auto-HD/3 Auto-HD/6 |
|
| HDMI | ★ Full HD, XGA |
| VGA | Full HD, XGA |
| TV | SDTV(720×480/576) |
| Mode | 16/9/4/1/SEQ – LIVE, 16/9/4/1 – P.B |
| Camera Adjust | SD Cameras Only |
| TV Adjust | N/A |
| Camera Title Name | English : 20 characters – Chinese, Japanese, Korean : 10 characters |
Auto-HD/6 Auto-HD/3 Auto-HD/2 |
|
| PTZ / Keyboard | 2 RS 485 – Terminal Block |
| ATM / POS | RS 232C – Terminal Block, Ethernet POS |
Auto-HD/6 |
Auto-HD/3 |
Auto-HD/2 |
|
| Primary | 6 HDD | 3 HDD | 2 HDD or 1 HDD + 1 eSATA |
| External | 2 eSATA | 1 eSATA | 2 HDD or 1 HDD + 1 eSATA |
| CD/DVD | Yes | Yes | N/A |
Auto-HD/6 |
Auto-HD/3 |
Auto-HD/2 |
|
| Jog-shuttle | Yes | N/A | N/A |
| H/W RAID | ★ RAID 1/5 Options | ★ RAID 1/5 Options | N/A |
Auto-HD/6 Auto-HD/3 Auto-HD/2 |
|
| Universal | Yes |
| EOL | Yes |
| Coaxitron | N/A |
| Privacy Zone | N/A |
| Covert Channel | Yes |
| Digital Zoom | x1 ~ x16 |
| Watermarking | Yes |
| Two-way Audio | Yes |
| Detection / Search | Motion, Sensor, Audio, Text |
| Fan Fail | Yes |
| 5 User with still image | |
| Capture | Full HD, XGA |
| iSCS Recording | ★ Yes ? |
| DDNS, DHCP, UPNP | Yes |
| CMS, VMS, RMS | Windows |
| Smart Phone (3G/4G) | Android, Apple |
| Mac Viewer | ★ Apple Mac OS |
General (Power, Operating Temp, weight, Dimensions, Certifications)
| Auto-HD/6 | Auto-HD/3 | Auto-HD/2 | |
| Power Supply | 90 – 250V, 50/60Hz | 12V/5A – Level 5 | 12V/5A – Level 5 |
| Consumption | 80Watts | 60Watts | 40Watts |
| Operating Temp. | 40° ~ 104° F | 40° ~ 104° F | 40° ~ 104° F |
| Humidity | 10 ~ 80 | ||
| Weight w/o HDD | 17.7 lbs | 8.9 lbs | 6.7 lbs |
| Dimension | 17.32″(W) x 16.93″(D) x 3.46″(H) | 16.93″(W) x 10.63″(D) x 3.38″(H) | 13.40″(W) x 11.80″(D) x 2.30″(H) |
| Certification | CE, FCC, RoHS Compliance |
Rugged Vault Dimensions & Back Views

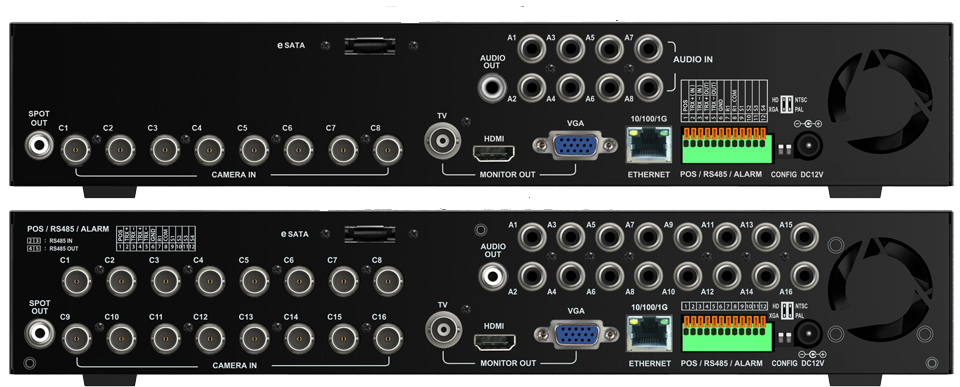

Rugged Vault/2 Back View
Rugged Vault/2 Dimensions
Rugged Vault/3 Back View
Rugged Vault/3 Dimensions
Rugged Vault/6 Back View
Rugged Vault/6 Dimensions
