Water-Proof, Dust-Proof, Chemical Proof

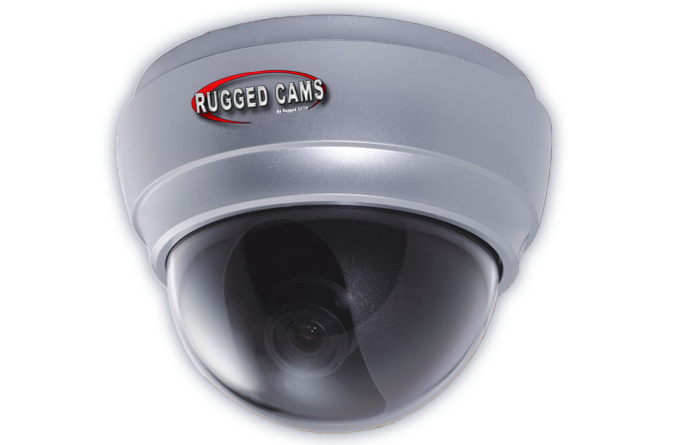

IMAGE: Waterproof outdoor dome Cameras


Introducing – The lowest priced completely submersible dome camera on the market to date. There is no other IP68 camera out there for this price. True Innovation at an Outstanding Price!

Some security cameras claim to be waterproof, but most are only water resistant. The Neptune Dome Security Camera is not only waterproof and dustproof, but can be submerged with no water incursion. It can even be washed down with a pressure washer.

The Neptune can be mounted on boats, ships, docks, car washes, waterparks, trains, trucks or anywhere you find wet or wash-down environments. Made of durable ABS plastic, the Neptune Dome Camera won't rust or corrode – even in salt water environments.

The Neptune Dome Camera can withstand a wide variety of environments as well. Rated down to 14 degrees and up to 122 degrees, this camera can handle many challenging environments.

This is truly a ruggedized security camera, and deserves to wear the “Rugged Marine” badge.


  • Super High Resolution – 580 lines.
  • Sony's 1/3” Super HAD Day/Night Camera with the NextChip DSP (Digital Signal Processor).
  • 4-9mm Auto-Iris Varifocal Zoom Lens.
  • Zoom Lens adjustments make zooming and focusing quick and easy.
  • Equipped with Automatic Gain Control (AGC), Automatic White Balance (AWB), and Backlight Compensation (BLC) functions are all built-in and fully automatic
  • Ceiling mount only
  • The Neptune Dome Camera is certified to IP68 standards and also has CE, FCC and RoHS certification
Installation / Technical Information
Power Consumption
Maximum Distance for 12v DC over standard 18/2 power wire for the Neptune Dome Camera is 750' feet

Neptune Dome Specifications

Image sensor 1/3" Sony Super HAD Color CCD
Effective Pixels NTSC : 768(H) x 494(V), PAL : 752(H) x 582(V)
H. Resolution 580TV Lines
Synchronizing system Internal
Scanning system Interlaced
Video output 1.0Vp-p Composite 75 Ohms
S/N ratio More than 48dB (AGC Off)
Min. Illumination 0.5Lux / F1.2
Shutter Speed 1/60 (1/50) to 1/10,000 sec
Gamma Correction 0.45
White Balance ATW
Gain Control Auto
Operating temp./Humidity -14°F ~ 122°F
Power source 12VDC
Operating current 120mA/12VDC
Lens 4 - 4mm Manual Varifocal Auto Iris lens
Iris Control AES
IP Rating IP68
Measurement 5.19"(D) x 4.05"(H)
Weight 1 lbs.

Neptune Inside Housing

IMAGE: Neptune Inside Housing

Click for larger image

Neptune Oring Seals

IMAGE: Neptune Oring Seals

Click for larger image

Lens & Adjustment

IMAGE: Lens & Adjustment

Click for larger image
