Stronghold – MP/TVI

HD Megapixel Camera    What IS HD-TVI

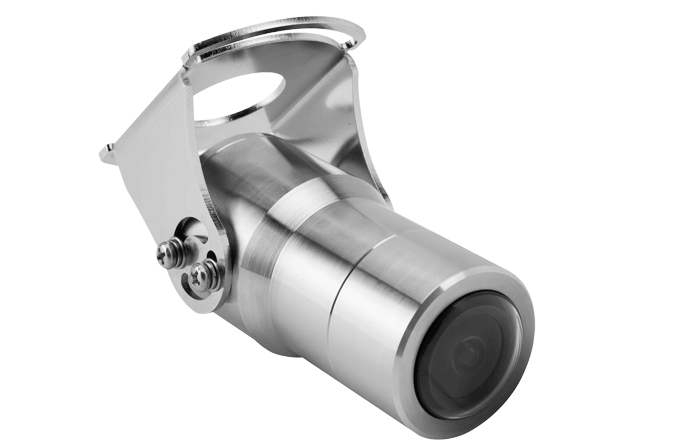

Multi-Purpose HD-TVI Marine Stainless Steel Camera

IP68 Sealed /AISI 316 Stainless Steel / Water & Salt Water Proof

IMAGE: stronghold-mp mobile camera icon


The new Stronghold-MP HD-TVI (Multi-Purpose) camera can be used as a backup camera on vehicles and vessels, and comes with a detachable Menu keypad that allows you to customize almost any setting and feature for optimum performance – and also allows you to mirror image or even flip the picture upside down if needed.

We have jacked the resolution up to an incredible 1080p (½.8" Sony Exmor CMOS – Low Illumination model).

This Marine HD Camera is perfectly designed for a wide range of industrial applications as well as Marine such as construction vehicles, truck and marine industry. The high grade 316 Stainless steel that we use to make this camera, is not only salt and rust resistant, but is also anti germ, so it can be safely used in the food processing industry as well.

The 2.5mm lens gives you a wide 150 degree field of view, and the small compact size will fit nearly anywhere you need it to go.

Installation / Technical Information
Power Consumption
0.350 mA

Maximum Distance over standard 18/2 power wire is 265' feet

Camera Video/Power Connection

IMAGE: 2.1mm Power Connector & BNC Video Connector

Click for larger image

Stronghold – MP HD-TVI

Image Sensor 1/2.8" Sony Exmor CMOS
Resolution 1080p
Scanning System Progressive
S/N Ratio more than 50db (AGC off)
Min. Illumination Color: 1.0 LUX, B&W: 0.5 LUX
D-WDR Off/0-8
SENS-UP Off/X2 - X30
Backlight Off/BLC/HSBLC
DNR Off/Low/Middle/High
Privacy Mask 4 Masks.
Motion Detection Off/On
Video Output Universal TVI, CVI, AHD: 1080p , 720p
Lens Fixed 2.5mm lens (170°)
Power Source 12V DC ± 10%
Power Consumption 4.0 Watt / .350 mA
Operating Temp. -4°F - 140 °F
Dimensions 1.93" Diameter x 4.50 Length
Weight 1.46 lbs.
