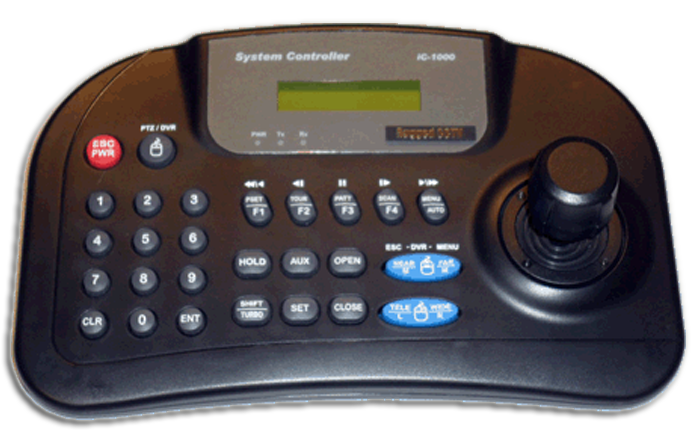

PTZ & DVR Controller

IMAGE: PTZ & DVR Controller

Back View of PTZ / DVR Controller


IMAGE: Back View of PTZ / DVR Controller

Click for larger image

Features

The PTZ / DVR Controller from Rugged Marine can not only control any PTZ camera, but can also control any of our DVR's (and most others that support USB mouse operation).

This PTZ / DVR Controller can controll as many as 255 PTZ Cameras at distances up to 4700 ft away

Can be powered by 12v DC or by use of 9v Battery



PTZ / DVR Controller Specifications

Keyboard Communication Interface: RS-485 (Tx 3 port, Trx 1 portz)
Pan - tilt-zoom operating distance
:4700 ft No 24 AWG wire
Multiple Protocol Sopport (Baud rate selectable)
Terminal Block (8p connector)
Keyboard Keypad Rubber Button
Numeric keypad and camera function keys
Joy Stick 3-Axis, variable speed with zoom
Input Volatge 12v DC or 9v Battery (battery mode)
Power Consumption Max. 140 mA
LCD Display 2 Lines Character LCD
Operation Temperature 32° F - 113° F
Humidity 10% - 70% RH
Certification CE, FCC, RoHS
