7" Waterproof Monitor

Marine Waterproof LCD Monitor

The Lowest Priced Completely Waterproof Monitor Available

IMAGE: 7 inch waterproof monitor by Rugged Cams

Perfect for cars, trucks, Boats, Construction Machinery, Mining, ATV/UTV's, etc.

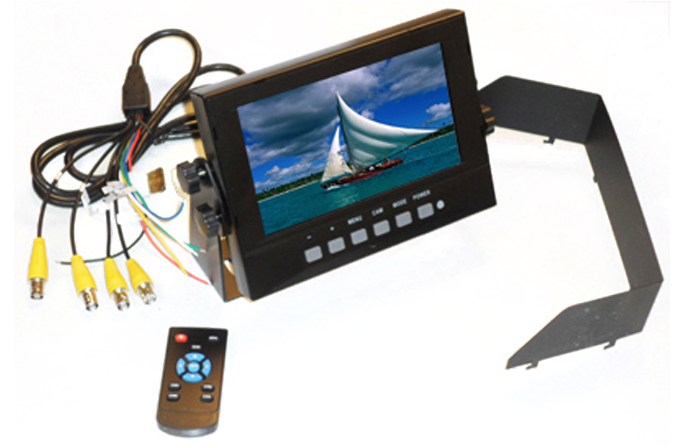

7" Waterproof Monitor

IMAGE: 7in Waterproof Monitor

Click for larger image

Back View of Monitor

IMAGE: Back View of Monitor

Click for larger image

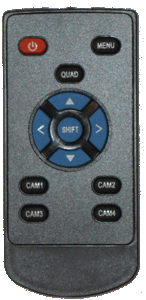

Remote Control

IMAGE: Remote Control

Click for larger image


Rugged Marine has introduced the lowest cost completely waterproof 7” LCD Monitor in the industry. Other waterproof monitors we have seen are as much as $1200 higher than this unit. Features a wide temperature range and will withstand heated water high pressure wash-down.


  • 7” Digital Color LCD TFT Monitor
  • 2 Channel Model or 4 Channel Model with Quad Switcher
  • Totally Sealed Aluminum Alloy Case with Steel bracket and plastic visor
  • Dustproof
  • Waterproof
  • Explosion Proof
  • Uses 200mA of 12V DC power
  • Hydrochloric Acid Resistant
  • IP69K Rated (better than IP68 – can handle high-pressure heated wash-down water and chemicals)
  • Each Channel can be switched from normal to “Reverse” images
  • Front Panel Controls and Wireless Remote Control included
  • Trigger Wires included for Call-Up of any channel automatically (by switch or connect to back-up, blinkers, etc.) Can set delay time for camera call-up as well.
  • Standby mode can also power up only when triggered
  • 2 Channel Model: single channel selectable (2 BNC Inputs)
  • 4 Channel Model: single, dual, triple & quad images selectable (4 BNC Inputs)
  • Menu can be changed from English to: Dutch, Spanish, Portuguese, French, German, Italian and Russian.
  • Wide Voltage Range: 12-32 Volts DC
  • Wide Temperature Range: -22°F to 175°F (-30°C to 80°C)
  • Wide Viewing Angles: Up: 50° Down: 60° Side to Side: 70°
  • 16:9 Aspect Ratio
IMAGE: Download specs icon IMAGE: Download manual icon

7" WaterProof Monitor Specifications

Resolution 800x480
Waterproof Rating IP69K
Dimension 7 inch Diagonal
Brightness: 400cd/㎡
Contrast: 500:1
lattice distance: 0.192(H) x 0.1805(V)
Aspect ratio: 16:9
Viewing angle: U:50°/ D:60°/ R/L:70°
Overall Dimensions: Monitor 8"W x 3.75"H x 1.75"D W/Bracket 9"W x 6.5"H x 2.25"D
Rating: 20,000+ hours
Power 12v DC - 32v DC
Power Consumption 4W Max.
