Single Camera Viewing package

View single HD-SDi camera on various monitors

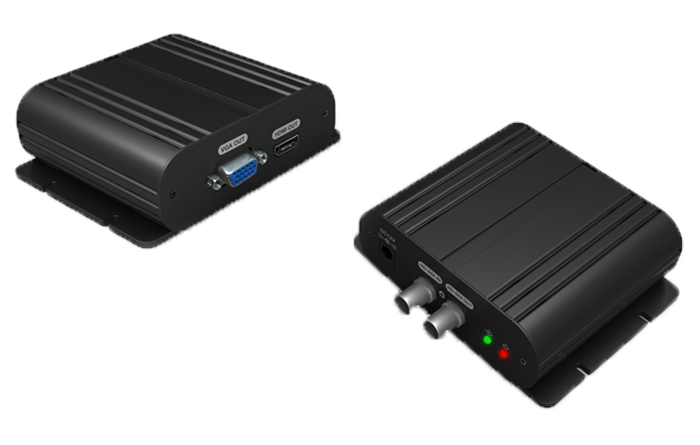

IMAGE: HD-SDi Converter

HD-SDi Camera to monitor

  • 1 HD-SDi input
  • 1 each HDMI, VGA, BNC Outputs
  • 12v DC power Supply
Factory Direct Price

$179
Quantity :

Part # RC-511

Features

Convert HD-SDI to HDMI & VGA

Allows you to view the video from an HD-SDi camera without the use of an HD-SDi DVR. Choice of either HDMI or VGA Monitors

  • Convert HD-SDI to HDMI & VGA
  • Full HDMI support including embedded Audio
  • Equalized HDMI input supports log HDMI ble up to 30m, 24gauge
  • HDMI v1.3 standard
  • HD-SDI SMPTE 292M support (1080p, 1080i or 720p)
  • Low power consumption. Free voltage 12VC, 1A
  • Compact size & Light Weight
Download specs for the converter

Analog to HD Quad Viewer


Input HD-SDI (SMPTE 292M)
Input Format 1080p 24/25/30/50/60, 1080i 50/60, 720p 24/25/30/50/60
Output HDMI with embedded audio, VGA output, HD-SDI loop output
Output Format 1080p 24/25/30/50/60, 1080i 50/60, 720p 24/25/30/50/60
HDMI Connector HDMI female
HD-SDI Connector BNC female
Power Consumption Free voltage 12VDC, 1A
Dimension (W x H x D) 4.5" x 3.5" x 1.35"

Dimensions


IMAGE: Dimensions

Click for larger image
