Indoor dome Camera

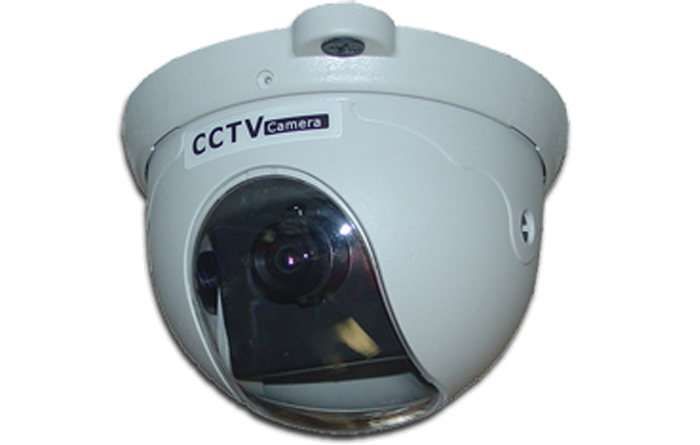

IMAGE: 550icm Dome Camera


Salon-550 Super Hi Resolution Indoor Dome NEW Minute Mount Feature Takes just 1 minute to mount + 2 screws and you’re done!!

Easy Mount/Easy connection No camera is simpler! White color blends in with any ceiling! 2 Year Warranty and Unlimited Technical Support for the life of your system

  • Fixed Lens 3.6mm
  • 550 Lines of Resolution
  • signal/noise ratio greater than 52dB
  • Dimensions (D X H) -- 4.21" x 2.52"
  • 350º pan rotation by hand
  • 75º tilt adjustment with a screwdriver
Installation / Technical Information
Power Consumption
Maximum Distance for 12v DC over standard 18/2 power wire for the Salon-550 Dome Camera is 1500' feet

Salon-550 Specifications

Signal system NTSC / PAL
Image Sensor Opsie Sensor
Sync system Internal
Horizontal resolution 550 TV Lines
Lens f=3.6mm, F2.0
Auto White Balance Auto (2500°K to 9500°K)
Electronic Shutter Auto
Aperture Auto
AGC Auto
BLC Auto (1/3 center)
Minimum illumination 0.01 lux
S/N Ratio >52dB
Power requirement DC12V±10%
Power Consumption 0.055 mA
Operating temperature -1 4 ºF ~ 122 ºF
Operating humidity 90% RH
Storage temperature -4 ºF ~ 140 ºF
Easy adjustment External 350º pan direction rotation
75º tilt direction adjustment
Dimensions (D X H) 4.21 inches x 2.52 inches
