Low Pro Dome Camera

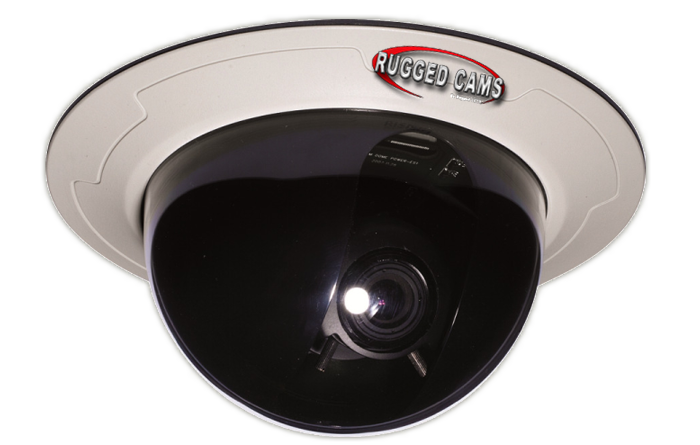

IMAGE: Rugged Cams Low Pro Dome Camera

Low Pro Dome 3-Axis Mount


IMAGE: Low Pro's 3-Axis Mount

Click for larger image

Features

"Low Pro Dome" is a high resolution Color Dome Camera developed in 2009 with a new DSP chip and improved in 2013 with the 1/3” Sony 960H Ex-view HAD CCD II image processor.

The built-in image conversion from Color to B/W at 0.1 Lux, greatly enhances the sensitivity and picture quality. An IR Sensitive mechanical Day/Night cut filter is built-in as well.

This camera has a DC Lens connection with which you can customize it for bright indoor applications. Enjoying an extraordinary sensitive, more than 650TVL Dome camera, never came so cheap.

"Low Pro Dome" is an ultra-slim dome camera containing a lot of user-friendly features. It incorporates a perfect and tool-free 3-Axis mount with which the camera can be installed on the wall, on the ceiling or on a slope with no limitation.

Installation / Technical Information
Power Consumption
150mA
Maximum Distance for 12v DC over standard 18/2 power wire for the Low Pro Dome Dome Camera is 600' feet

Low Pro Dome Dome Camera Specifications


Image sensor 1/3" Sony 960H Ex-view HAD CCD
Effective Pixels NTSC : 976(H) x 494(V), PAL : 976(H) x 582(V)
H. Resolution 650TV Lines(Color)/ 700TV Lines(B/W)
Synchronizing system Internal
Scanning system NTSC : 525 Lines PAL : 625 Lines 2:1 Interlaced
Video output 1.0Vp-p Composite 75 Ohms
S/N ratio More than 52dB (AGC Off)
Min. Illumination 0.1Lux(Color)/ 0.01Lux(B/W)
Shutter Speed NTSC:1/60~1/100,000 sec. PAL:1/50~1/100,000 sec.
Gamma Correction Standard y = 0.45
White Balance 1,800'K ~ 10,500'K Auto (ATW/ Push /Push lock/ User 1/2, Anti CR, Manual)
Gain Control Standard : -6dB ~ 44.8dB Auto
Smear Effect 0.005%
Power source 12VDC/24VAC
Operating current 150mA/12VDC, 85mA/24VAC
Lens 3.3 - 12mm Manual Varifocal DC Auto Iris lens
MTBF 80,000 hours
Iris Control Auto
Operating temp./Humidity -4°F ~ 122°F
IP Rating indoor use only
Measurement 7.08"(D) x 3.19"(H)
Weight 2.09 lbs.

FUNCTION

Shutter/ AGC Auto/ Manual
White Balance ATW / Push / Push Lock / User 1, 2/ Anti CR/ Manual
Backlight BLC/ HLC/ Off
Picture Adjust Mirror(On/Off), Brightness, Contrast, Sharpness, HUE, Gain
ATR On/ Off
Privacy Mosaic On/Off (4 Zone setting available)
NR NR Mode/ Y Level/ C Level
Camera ID On/ Off
Language English/ Germany/ French/ Russian/ Spanish/ Portuguese, Japanese

NOTE: Camera OSD Menu is accessed through the RS485 Data connection, this needs to be connected the DVR's RS485 port or to a test monitor with RS485 access to adjust the cameras OSD.
