Stronghold – MP/IR Auto TVI

HD Megapixel Camera    What IS HD-TVI

Multi-Purpose Infrared Marine Auto Focus Stainless Steel Camera

IP68 Sealed /AISI 316 Stainless Steel / Water & Salt Water Proof

IMAGE: Stronghold Stainless steel white light mobile camera
OSD Menu Controller Included

IMAGE: On Screen Display Controller Click for larger image


Stronghold – MP/IR Auto TVI

Multi-Purpose Megapixel-HD Stainless Steel Infrared Camera

HD-1080p TVI models
With Motorized Zoom & Menu Control from the DVR

Rugged Marine has always been the go-to source for Stainless Steel Cameras. We are constantly improving and updating these rugged cameras, and they are in use at thousands of Food Processing Plants, Factories, Chemical Processing Facilities, Marine Vessels and anywhere you find a challenging environment.

The latest Stainless Steel Camera from Rugged Marine is the StrongHold MP/IR Stainless Steel Multi-Purpose Camera. This High Definition 1080p camera can be used as a Mobile camera or fixed mounted camera with Motorized Zoom Control from the DVR, a Smart Phone or even a Tablet.

The Heart of this Rugged Camera is a 1/3” Panasonic 2.2 Megapixel Progressive Scan Image Sensor that can deliver 1080p or 720p HD Color Video, as well as Black & White with Infrared Light at night.

The StrongHold MP/IR also delivers Infrared Lighting at night via 2 High Power Pearl LED Modules that can illuminate an area out to greater than 75 feet.

The best part of this camera is the 2.8-12mm Motorized Auto-Focus Zoom Lens that can be controlled from anywhere via your DVR.

See the Specs for more detailed information, and see the entire family of StrongHold Stainless Steel Cameras from Rugged Cams. We make many models, including White Light Illumination.

IMAGE: Download specs icon
Installation / Technical Information
Power Consumption
0.340 amp

Maximum Distance over standard 18/2 power wire is 275' feet

Stronghold – MP/IR Auto TVI

Image Sensor 1/3" Panasonic CMOS
Resolution 1080p
Scanning system Progressive
Video Output 1080p, 720p, Analog: NTSC/PAL CVBS
Waterproof Rating IP68
S/N Ratio more than 50db (AGC off)
Min. Illumination Color: 1.0 Lux, BW:0.5Lux. Color DSS: 0.002 LUX, BW DSS: 0.0008LUX
D-WDR Off/0-8
SENS-UP Off/X2-X30
Privacy Mask 4 Masks
Backlight Off/BLC/HSBLC
DNR Off/Low/Middle/High
Motion Detection Off/On
Power Source 12v DC +-10%
Lens Motorized 2.8 - 12mm, Megapixel
Power Consumption 4.0 Watt / 0.340 amps
Operating Temp. 14°F - 122 °F

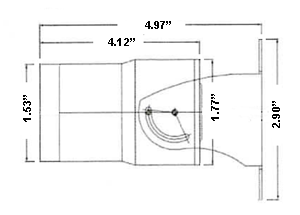

Dimensions 3.00" Diameter x 6.25 Length x 4.75 Height
Weight 4.51 lbs.
