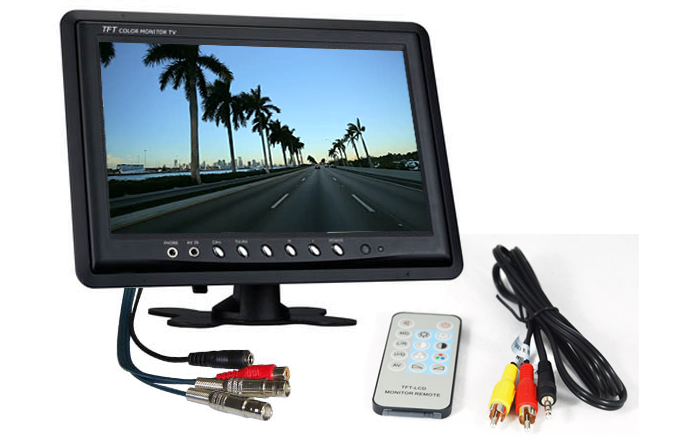

9" LCD CCTV Monitor

IMAGE: 9 inch lcd monitor
  • 9 inch CCTV TFT LCD
  • Two Video inputs
  • One RCA audio input
Factory Direct Price

$169
Quantity :

WARNING!!
If connecting this devise to a boat or vehicle charging system use the 12V DC Voltage Regulator to prevent over voltage and VOIDING the camera warranty! x


Small Image of Voltage Regulator Voltage Regulator $16



Features

Rugged Marine 9Inch LCD CCTV monitor is great for use on confined spaces, automobiles, boats, farm equipment and many other places.

This 2 Channel monitor also has Audio in and out connections the video inputs are standard BNC female connectors, power connector is a 2.1mm male plug and the 2.1mm female plug is included. 12v DC power supply is also included.

We even include a mounting bezel to make installation a professional appearance.

  • Screen Size: 9 inches
  • Display Mode: 16:1
  • Format: PAL/NTSC
  • Power Supply: DC 12V
  • 2 Video / 1 Audio input
  • Card Style Wireless Remote
IMAGE: Download specs icon IMAGE: Download specs icon

9" LCD CCTV Monitor Specifications

Display Size 9" (in) Diagonal
Format Ratio16:9
Resolution800 (H) x 480(W)
Video Input 2 BNC Connectors
Operating Temperature32° F to +104° F
Brightness / Color / ContrastAdjustable
Operating Power12v DC
Audio Input composite (RCA)
Audio OutputHeadset Plug (earphone)
Dimensions Monitor Only 9-1/8"(W)x 6-3/8"(H)x1"(D)
Dimensions Mounting Plate 9-5/8"(W)x6-7/8"(H)x1"(D)
flush mount bezel

9" Monitor Back View


IMAGE: 9inch Monitor Back View

Click for larger image

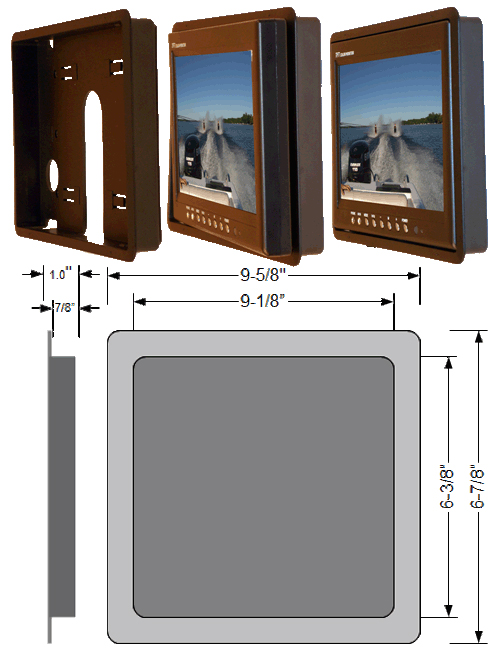

Flush Mount Bezel


IMAGE: Flush Mount Bezel

Click for larger image
